Description

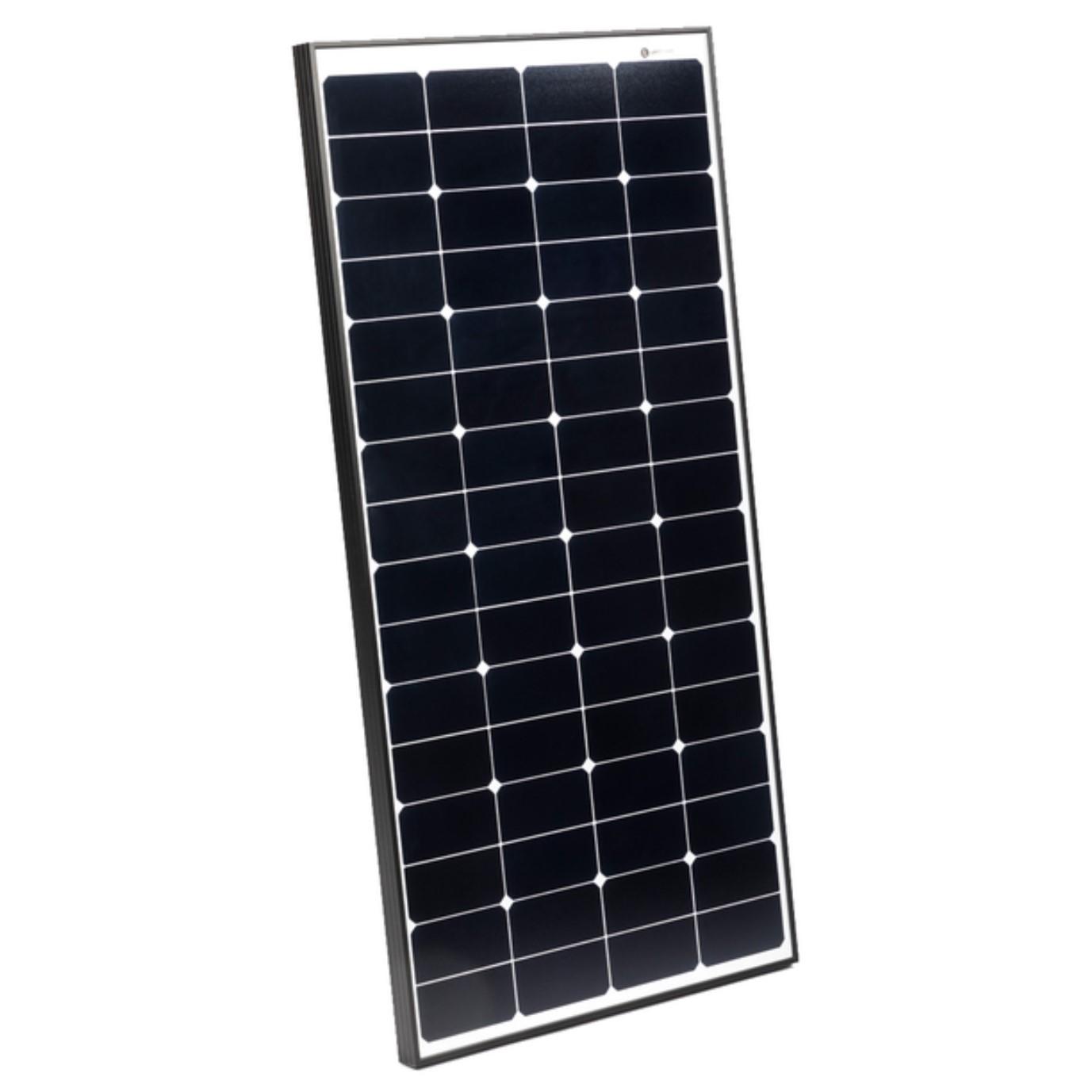

Function Allows to efficiently recharge batteries from solar energy. The rigid frame can be drilled to ensure installation on a stern arch or other support.
Power of the panel 120 W
Cell type Back contact Sunpower Maxeon Gen III (efficiency 24%)
Max Power Voltage (VMP) 19,2 V
Intensity at Maximum Power (IMP) 6,25 A
Open circuit voltage 23 V
Short circuit current 6,87 A
Connection Supplied with 0.9 m of cable terminated with MC4 connectors. Possibility to connect directly to the junction box.
Cell size 125 x 125 mm
Number of cells 32
Aluminium frame Hollow with double wall anodized color
Frame height 35 mm
Glass thickness 3.2 mm
Connection box IP65
Panel size 540 x 1060 mm
Weight 6.55 kg
Product warranty 10 years parts and labour
10-year production 90% guarantee
Production at 25 years old 80% guarantee
